  Application
application material series
Standard type
Normal plastic ABS.PP.PE.PS
Anti-wear type
+30%GF (glassfiber)
+50%GF (glassfiber)
+70%GF (glassfiber)
Iron powder, ceramic, carbon fiber
Anti-corrosion
PVC, POM, fluoroplastic
Halogen free ones
PA4T、PA6T、PA9T、PA10T
machine type series
Demag
ARBURG
TOSHIBA
JSW
NISSEI
FANUC
SUMITOMO
Material type series
SK800 halogen free high corrsive special use screw
SK700
SK600 plasma surfacing screw
SK500
SK400
SK300
HK60 HIP barrel
HK50 ceramic metal barrel
HK40 optics special use barrel
Cobalt-based alloy barrel
Nickel-based alloy barrel
Fe-based ally barrel
Purgefast
High quality,high efficiency,cost saving screw purging
Patent products
PLANET MIXING SCREW TIP
ANTI DROOL NOZZLE
PRESSURE HOLDING NOZZLE
Mixing filter nozzle
Accessories accessories
Blade screw
Nozzle
flange
Screw head
Fully automatic cleaning machine
Instructions for use of Fully Automatic Vacuum Cleaner
Introduction to Fully Automatic Vacuum Cleaner
Energy saving dehumidification screw
Liquid silicone series
Liquid silicone series
产品应用

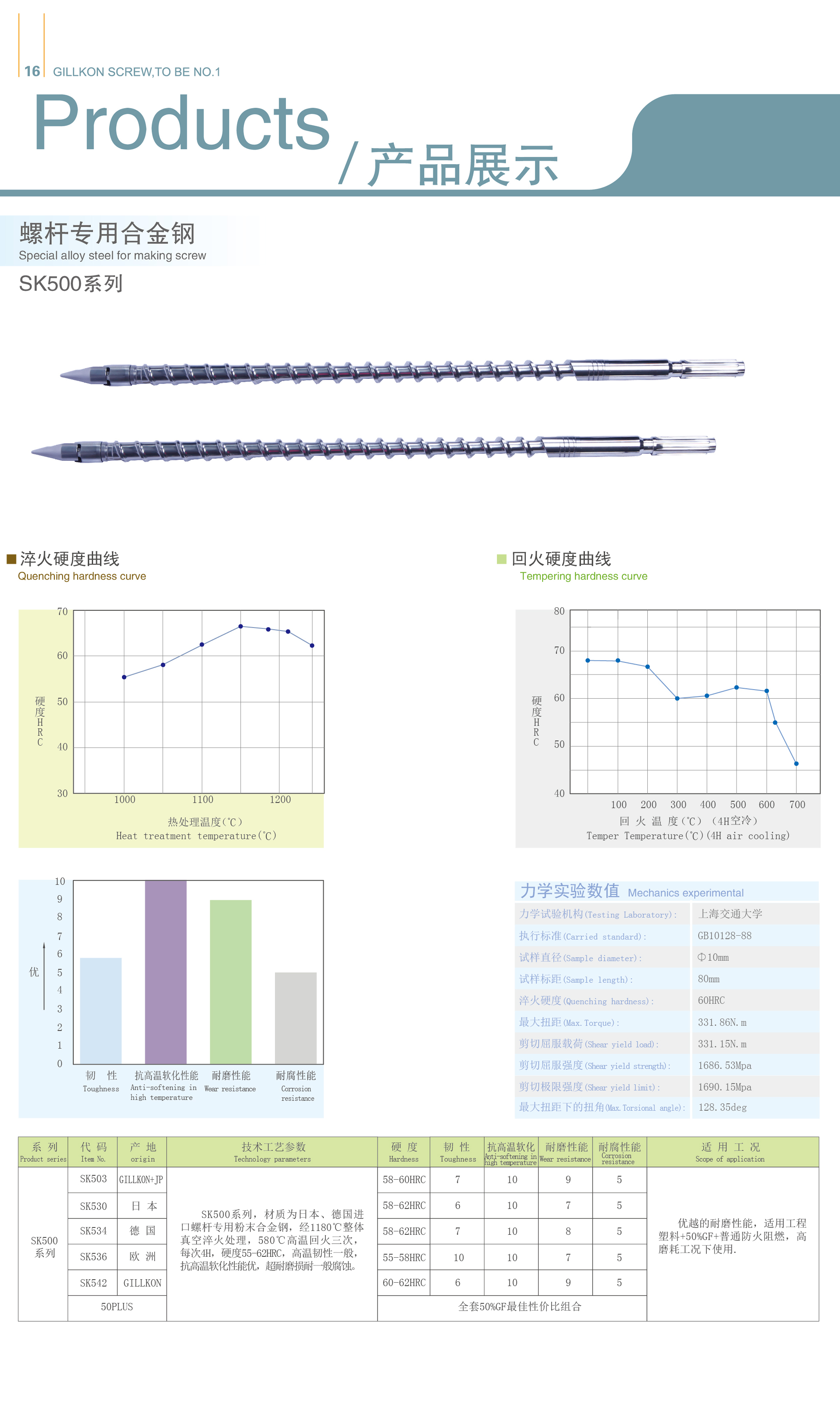

Product name: SK500 全硬螺杆 Brand name: 全硬螺杆、合金螺杆、积康螺杆
Model name: 注塑机、挤出机、造粒机、吹塑机等 Material: 进口合金钢
Application conditions: 德国、日本 Range of work: 直径:14D-180D 长度:10-3000mm
Processing technic: 真空淬火、高温回火 Straightness: 58-60(HRC)
Technical parameter: SK500系列,材质为日本、德国进口螺杆专用粉末合金钢,经1180℃整体真空淬火处理,580℃高温回火三次,每次4H,硬度55-62HRC,高温韧性一般,抗高温软化性能优,超耐磨损耐一般腐蚀。

Applicable conditions 优越的耐磨性能,适用工程塑料+50%GF+普通防火阻燃,高磨耗工况使用。




Product description

SK500 series, the materials are the special powder alloy steel for making screw which are imported from Japan and Germany.Trough 1080℃ vacuum quenching and three times of 580℃ tempering, four hours one time. The hardness will be HRC55-62, common function of toughness in high temperature,good function of softening resistance in high temperature, good function of anti-wear and normal function of anti corrosion. Alloy compsition: C:1.26, Cr:4.2,Mo:5,Si:0.9, W:6.4, V:1.9, Co:2.1

Good function of anti wear which will be fit for engineering plastic+50%GF+common fire retardant and high wear environment
